Mobile Guard Shack & Gate Control Surveillance Platform

All in one trailer-mounted security Center

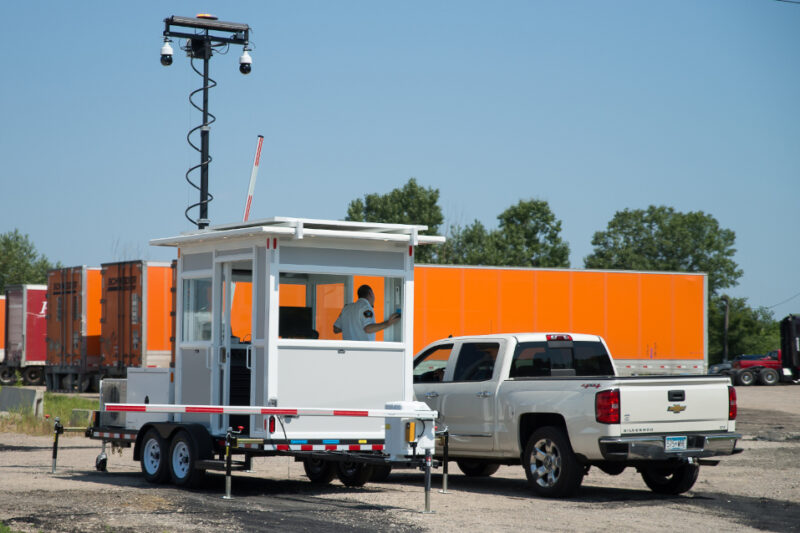

Mobile Guard Shack & Gate Control Surveillance Platform

The CheckPoint’s purpose-built platform combines a guard shack with gate control, video surveillance and lighting technologies. This mobile system offers a weatherproof, climate-controlled, spacious security shack along with the unique ability to control ingress and egress to a remote facility. Ideal for securing construction sites, utility base camps, laydown yards and distribution centers.



Request Info/Web Demo



For more ways to reach us, please visit our Contact page.



Message could not be sent. Please try again or call us at 651-434-2333 and we’ll be happy to help you.

We appreciate your interest in our products, and we’ll get back to you within one business day.


Key Features


Advanced Interactive Dashboard

Advanced MPStatus dashboard application provides interactive SMS and email notifications, health stats, and full control of your system’s integrated technologies.

Self-Sustaining Hybrid Power System

Solar panels on top of the enclosure charge the battery and electrical systems. An embedded diesel generator efficiently runs only when needed for back-up. Shore power can also be used if available.

Surveillance & Lighting

Record or remotely view site activity 24/7 even when the shack is unoccupied. The 20 ft. telescoping mast raises and lowers easily with an electric winch. The cameras are held steady for clearer images with our mast stabilization system.

Top mast LED flood lights illuminate the surrounding area with two 42″, 33,000 lumens light bars. A mid-mast junction box is prepped for placement of additional accessories if needed.

Automated Barrier Gate Arms

Manage incoming and outgoing traffic with a dual, independently controlled entrance and exit gate system. The barrier arms have three photo-eye vehicle drive-up detector sensors, red/green colored LED notification lights and are operated via wireless remote control. Each 12 ft. arm is removable and packs neatly for transport with on-board storage.

Spacious Well-Lit Interior

Room to move and work efficiently with ease. Outfitted with built-in work areas and storage, electrical outlets with USB charging ports, a monitor and master control panel. Interior and exterior recessed lighting provide plenty of light for the night watch.

Climate Controlled Comfort

The insulated protection enclosure offers protection and is built for a wide range of environmental conditions with a dual heating and air conditioning unit.

360° Vantage Point of Site

Extra heavy duty tempered safety glass windows, including glass in the two lockable sliding doors, allow a full view in all four directions outside of the shack.

Trailer

  • Deployed: 330” x 100” x 240” * (LxWxH)
  • Travel: 250” x 100” x 120”
  • Gross Weight 6,300 lbs.
  • 2 5/16 ball adjustable pintle hitch
  • Dual 3500 lb. torsion axles, electric brakes
  • 7 pin wire towing harness for lighting and brakes
  • 4 outriggers with jacks
  • D.O.T. compliant external safety lighting

*Includes mast fully extended and tongue length of 53” and rear gate control arm extended at 100”

Rack Mount Enclosure

  • Latching, lockable door, 2 pressurized struts
  • Ventilated battery storage compartment
  • Interior (rack enclosure) LED lighting (auto on/off)

Mast with Cabling

  • 20 ft. telescoping, 4 sections
  • Electric winch for raising/lowering mast
  • Mast stabilization system
  • Cable management system
  • Mid-mast junction box for additional accessories
  • Top mast LED strobe light assembly; viewable 360°
  • Top mast LED flood lights; 2 – 42” light bars with
    33,000 lumens
  • Camera options for top and mid-mast

Barrier Gates

  • 2 – 12 ft. removable barrier arms with colored LED notification status
  • Exit arm and controller extend up to 100” from back of trailer
  • On-board arm storage
  • 3 photo-eye vehicle drive-up detector sensors
  • Wireless remote control for dual barrier arm gate control operation

Hybrid Power System

  • 8000 watt diesel generator/40 gal. fuel tank
  • External 220 VAC power connection port
  • 800 Ah AGM battery package @ 12VDC
  • 900 watt solar package

Guard Shack

  • Exterior 90” x 72” x 90”
  • Interior 82” x 64” x 88”
  • Extra heavy duty tempered safety glass windows (4 sides)
  • 2 sliding lockable doors with windows
  • 2 non-slip removable steps
  • Split HVAC system: Fujitsu Halcyon – 9000 BTU, ductless unit

Smart Design Utilizes Every Inch of Space Efficiently

  • Front and back built-in shelves or work areas
  • Space for seating
  • Interior storage chest with 5 drawers
  • Convenient outlets and USB charging ports

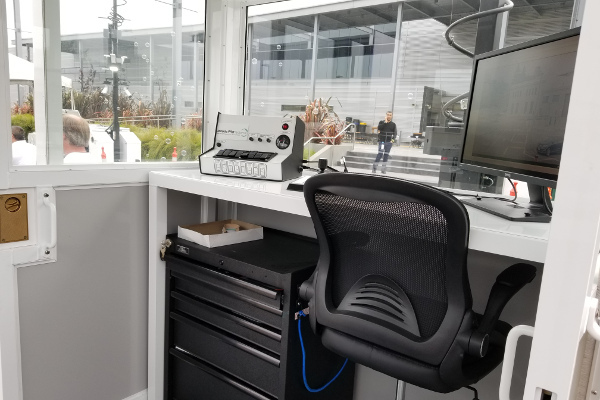

MPS CheckPoint features a spacious interior workspace for guards

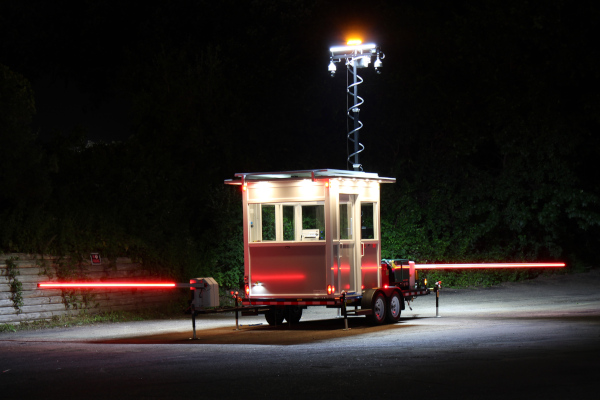

MPS CheckPoint has bright lighting for night duty

Made for Night Duty

  • Excellent lighting inside and around the unit
  • Bright LED lights on barrier arms for traffic control at night
  • Clear 24/7 video surveillance even when unattended

Road Ready for Safe Travel

The CheckPoint is designed for easy setup, pack-up and transport. Its many smart features include tool-less deployment, pre-wired mast, and quick release camera mounts with on-board storage for the removable barrier arms and cameras.

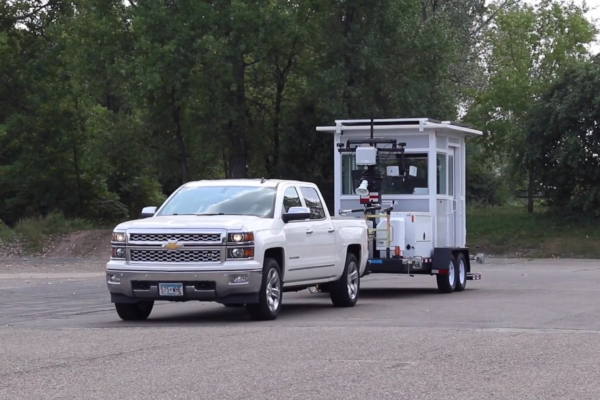

The MPS CheckPoint mobile guard station is as easy to tow as a trailer

Limitless Technology Integration

Mobile Pro Systems offers full integration with world-class cameras, sensors, deterrent devices and video management software.

All platforms are built to order with your custom requirements. Here are just a few of our technology partners:
