Gate Sentry

Gate Control Surveillance Camera System

Sentry series

Gate Control Surveillance Camera System

The Gate Sentry pedestal system’s card reader/keypad allows authorized personnel to unlock gates and enter restricted premises. It also provides a high level of camera surveillance with detection and deterrent options to guard sites.


Request Info/Web Demo


For more ways to reach us, please visit our Contact page.


Message could not be sent. Please try again or call us at 651-434-2333 and we’ll be happy to help you.

We appreciate your interest in our products, and we’ll get back to you within one business day.

Key Features

Advanced Interactive Dashboard

Advanced MPStatus dashboard application provides interactive SMS and email notifications, health stats, and full control of your system’s integrated technologies.

Minimizes Re-Wiring

Accepts 90-277VAC input and avoids traditional installation power obstacles. This substantially reduces the cost of deploying advanced technologies in ways not previously available.

Card Access Control

Card reader allows authorized personnel to open gates via wireless technology. The Gate Sentry accommodates most card reader manufacturers and software platforms.

Sleek Style

The Gate Sentry can be customized to blend into the surroundings or modified to serve as a deterrent to crime in the area.

Modular Design

Adaptable platform with unlimited configurations for cameras, lighting, audio or sensors.

Limitless Integration

Full software integration with any world-class camera, sensor or video management system.


  • Pedestal tower: 9.0” X 9.0” X 129” (LxWxH)
  • Base size: 20” X 20” X 2” (LxWxH)
  • Heavy duty base mounting system
  • Rugged aluminum structure
  • Powder coated for durability
  • Flexible modular configuration options
  • Thermal controlled enclosure


  • 110 VAC charge and lithium battery back-up
  • 45-135AH lithium battery options
  • 90-277 VAC Input
  • High quality, long lasting and efficient lithium-ion based battery packs
  • 3000 charge cycle per battery pack


  • Tamper Sensor
  • Security Screws (optional)
  • GPS Geo Fencing

All-In-One Surveillance System to Secure Critical Access Points

Each Gate Sentry is customized to your specific requirements. Units support multiple cameras and motion sensors which trigger recording when cars approach and at close range. Targeted lighting provides safety. Audio options include two-way remote communication and pre-recorded messages to deter intrusion when activated by motion detection or manually in real-time.

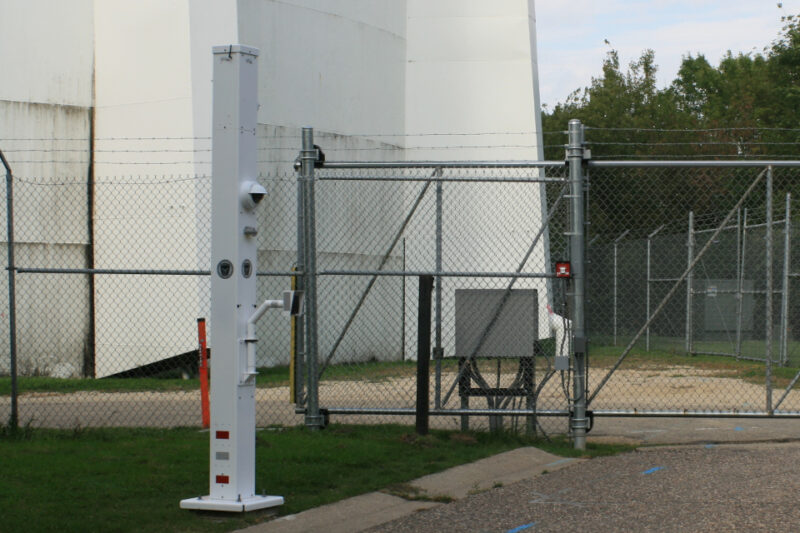

MPS Gate Sentry at Substation
MPS Gate Sentry at Public Utility

Optional Card Reader Mounting Arm for Drive-Up Convenience

  • 13″ extended card reader mounting arm
  • Rotates 90° either direction in a ‘breakaway’ action when bumped
  • Wireless gate operation

Limitless Technology Integration

Mobile Pro Systems offers full integration with world-class cameras, sensors, deterrent devices and video management software.

All platforms are built to order with your custom requirements. Here are just a few of our technology partners:

More Surveillance Solutions from the MPS Sentry Series

Pole-Mounted Standalone Security Camera System

Power Sentry

Mounted standalone surveillance camera system for poles or walls.

Autonomous Indoor or Outdoor 360° Surveillance Tower


Autonomous indoor/outdoor surveillance system with 360 degree recording around the tower.

Automated License Plate Recognition Pedestal System

ALPR Pedestal

Ease ALPR setup with this integrated automated license plate recognition system.
